Modula Robot Interface for special applications

Interfacing Modula automatic warehouses with anthropomorphic robots for greater productivity

Enhancing Modula automatic warehouse processes using a robot interface to boost productivity is simple and straightforward.
Robots and cobots of different sizes, including autonomous mobile robots, can simulate human movements and interface with Modula.

Anthropomorphic robots, which mimic human arm movements, are pivotal to numerous applications and are now widely used in manufacturing facilities across different sectors.

Needless to say, a robot interface offers countless automation benefits in terms of performance, safety and ergonomics.
By delegating repetitive or strenuous tasks to robots, you can boost efficiency and productivity and achieve a safer workplace environment – with a robot interface, you can be sure of 100% workplace safety.

Robot interface

How does an anthropomorphic robot interface with Modula warehouses?

Modula warehouses can interface with anthropomorphic robots if the following prerequisites are in place:

• Modula WMS Premium Software
This is required to use the standard protocol for integration between the Modula unit and the robot. Communication takes place via Siemens PLC or Socket, using the same command structure for both solutions.

Robot Interface Kit
This must be installed on the electrical panel to manage three output signals from Modula to the robot, and two input signals from the robot to the Modula unit.

MIR and Anthropomorphic Robots

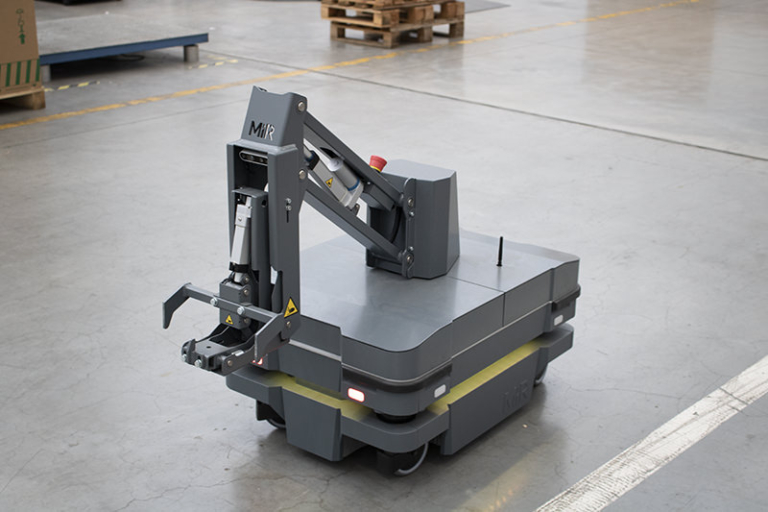

A real-world example of robotic integration is when a MIR (mobile industrial robot) interacts with an anthropomorphic arm.
The MIR that is generally used for logistics can be used to pick items from the Modula bay.
This combination allows fully automated picking, which is ideal for picking individual items if it is also fitted with an onboard cobot.

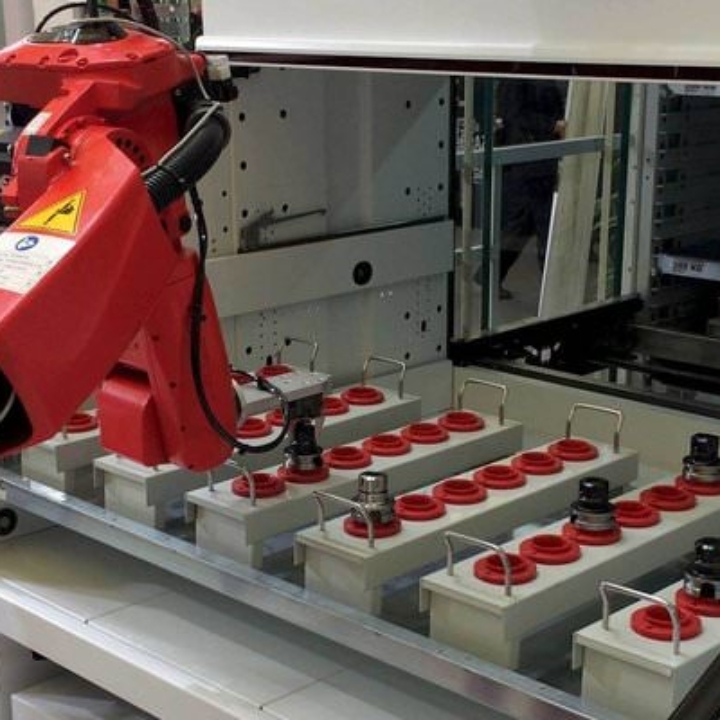

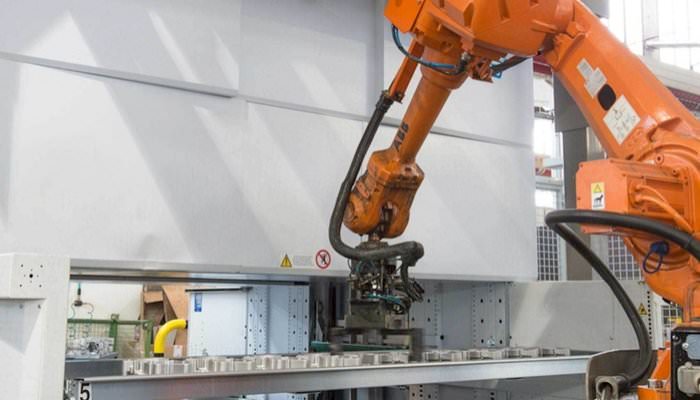

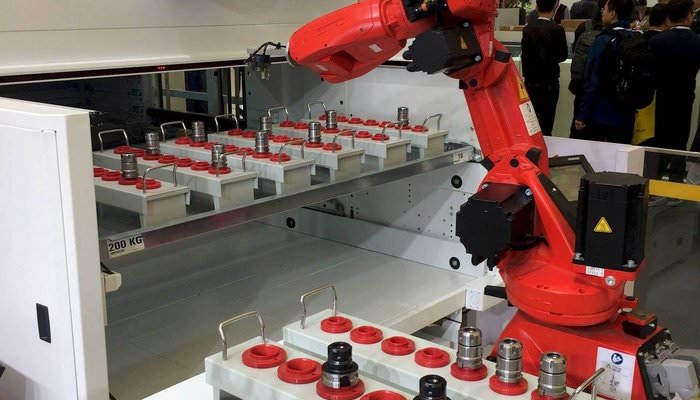

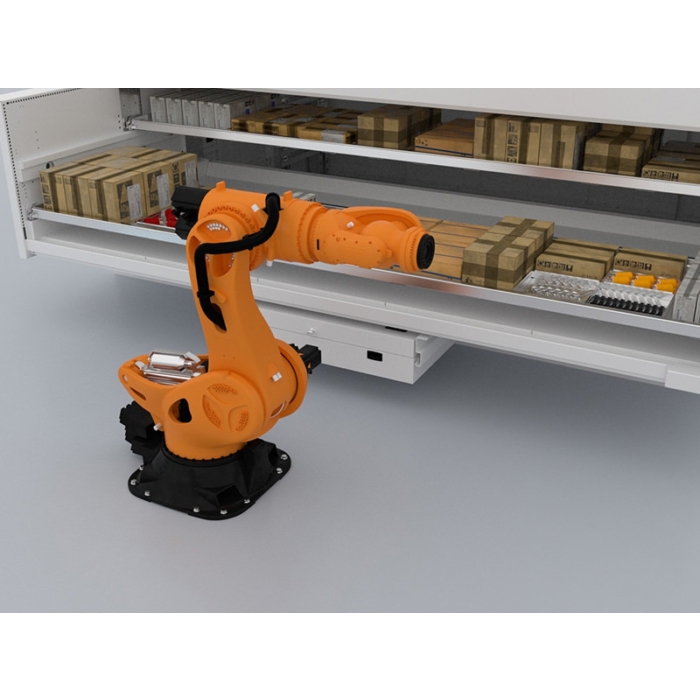

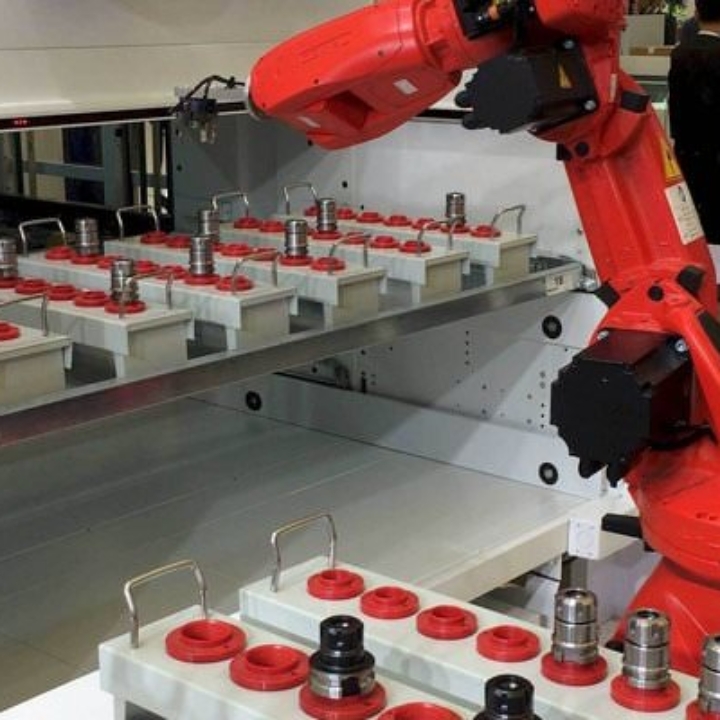

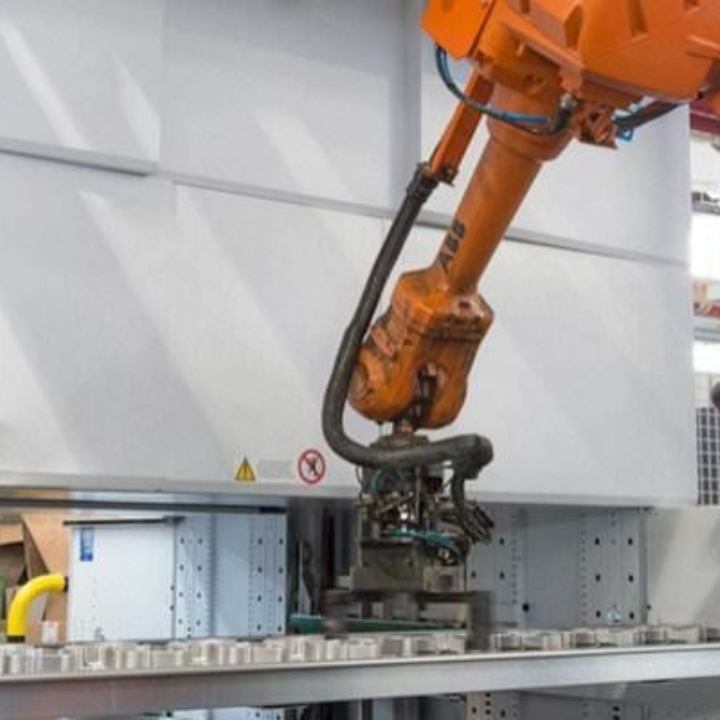

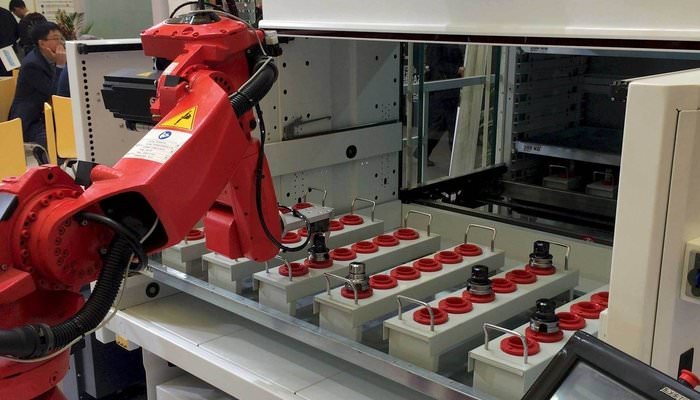

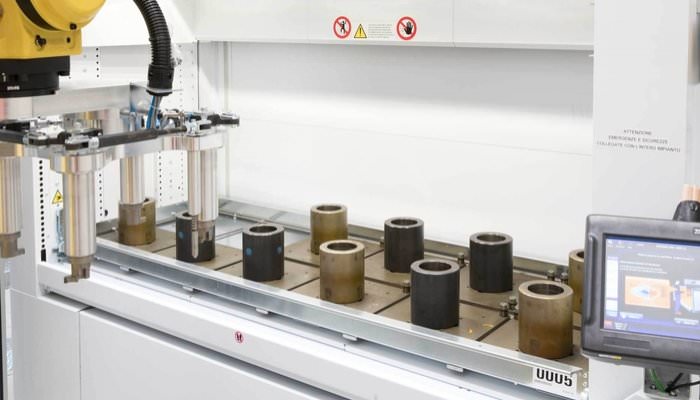

The anthropomorphic arm picks items directly from trays in the Modula automated warehouse, removing the need for human intervention.
Anthropomorphic robots are integrated via the Modula interface in this advanced, versatile system for vastly improved picking and putaway operations.

Robot interface
